Introduction

The Wireless Mesh Network (WMN) is a cutting-edge technological advancement in wireless networks that allows multiple devices to form one intelligent network. Unlike traditional Wi-Fi networks that typically rely on a central access point or router, a Wireless Mesh Network allows multiple nodes to communicate with one another using a mesh topology. This structure can improve coverage and network resilience because traffic can be redirected when a node or connection becomes unavailable.

The growing demand for seamless internet connectivity has made wireless mesh networks an essential solution for industrial facilities, smart cities, and large public spaces. The ability of mesh networks to self-configure, expand, and self-heal without large cables makes them perfect for areas that require flexible and scalable wireless communications.

This guide explains how a wireless mesh network works, its architecture, routing protocols, security features, advantages, limitations, and real-world applications. By the end, you’ll understand when a Wireless Mesh Network is the right choice for modern connectivity challenges.

What Is a Wireless Mesh Network?

Wireless mesh network definition

The Wireless Mesh Network (WMN) is a wireless communication system made up of interconnected devices, referred to as mesh nodes, working together to provide continuous coverage. Instead of relying on a single router or network, each mesh node is able to communicate and receive data while forwarding traffic to other nodes, thereby increasing the resilience of networks while also expanding the coverage area and minimising the impact of a single node’s failure.

Wireless mesh networks have become an essential asset in areas that require reliable connectivity, such as smart cities, manufacturing automation, hospital campuses, and universities, along with emergency management systems. Self-configuring and self-healing capabilities are ideal for networks that have to adjust quickly to changing circumstances with only minimal involvement from the users.

How Does a Wireless Mesh Network Work?

A wireless mesh network works by allowing mesh nodes to communicate with nearby nodes through wireless connections. When a device sends data, the network determines an appropriate path through the available mesh nodes to reach its destination.

Gateway nodes connect the Wireless Mesh Network to the internet, while the remaining mesh nodes extend coverage by forwarding data across multiple wireless hops. This multi-hop technology extends network coverage across large areas without requiring every device to connect directly to a gateway.

Key components of wireless mesh networks

Mesh nodes

Mesh nodes form the backbone of any Wireless Mesh Network. They communicate with neighbouring nodes, relay network traffic, and help ensure continuous coverage. Because mesh nodes can participate in routing, the network may continue operating when individual nodes or connections fail, provided alternative paths are available.

Gateway

Gateways connect Wireless Mesh Networks to external networks like the internet or corporate networks, acting as the main entry and exit points for data. Users in the Mesh network can use them to access online resources as well as communicate with devices outside their local area network.

Clients

Client devices that access network services through mesh infrastructure include smartphones, laptops, tablets, IoT sensors, surveillance cameras, and smart appliances. Typically, these end-user devices connect to the nearest mesh node for reliable wireless access.

Access points

Access points serve as the wireless interface that enables client devices to access the Wireless Mesh Network. In many deployments, mesh nodes also function as access points while simultaneously forwarding traffic to other nodes – this streamlined approach simplifies network expansion and helps prevent coverage gaps.

Wireless Mesh Network Architecture

Wireless mesh network architecture

A wireless mesh network architecture specifies how nodes, gateways, and client devices are organised to deliver reliable, scalable, self-healing wireless communication. In contrast with traditional wireless networks, which rely on one central router for intelligence distribution, Wireless Mesh Networks distribute network intelligence among multiple interconnected nodes for automatic route optimisation, fault tolerance, and seamless coverage over large geographic areas.

Types of Wireless Mesh Network Architecture

Infrastructure mesh

Infrastructure mesh networks are among the most frequently deployed architectures for enterprise and public networks, featuring dedicated mesh routers as the backbone for client devices connecting to them for internet and network access. This architecture boasts high levels of reliability, central management control and efficient coverage – perfect for campuses, smart cities or municipal Wi-Fi deployments.

Client mesh

Client Mesh architecture allows end-user devices to communicate directly without using dedicated mesh routers, thus creating a fully distributed network. It is frequently employed in temporary deployments, military operations, and emergency response scenarios where network infrastructure may be limited.

Hybrid mesh

Hybrid mesh architecture combines the advantages of infrastructure mesh and Client Mesh designs. Dedicated mesh routers serve as the primary backbone, while client devices may relay traffic when necessary. This flexible approach increases network resilience, expands coverage areas, and supports dynamic environments like industrial facilities, large campuses, or smart city ecosystems.

How Data Travels Through the Network

In the case of a Wireless Mesh Network, data flows through multiple nodes, rather than relying upon one single router or direct path to communication. When a client device transmits data, the data is first received by a nearby mesh node. The node then evaluates the available routes and forwards the data toward its destination. It then analyses the available routes before sending the data to the destination. This process, known as multi-hop communication, allows the network to extend coverage across larger areas while maintaining connectivity.

Routing protocols continually monitor network conditions such as signal strength, congestion, and node availability to determine the most efficient route for data transmission. If a node or connection becomes unavailable because of a power interruption, interference, or hardware failure, the network can redirect traffic through an available alternative route. This self-healing feature minimises interruptions to service and assures stable data delivery, which makes Wireless Mesh Networks well suited for mission-critical tasks such as smart cities and industrial IoT and emergency communications systems.

Wireless Mesh Network Architecture Diagram

Internet
│
Gateway Node
│
Mesh A ─── Mesh B ─── Mesh C
│ │ │
Mesh D ─── Mesh E ─── Mesh F
│
Client Devices

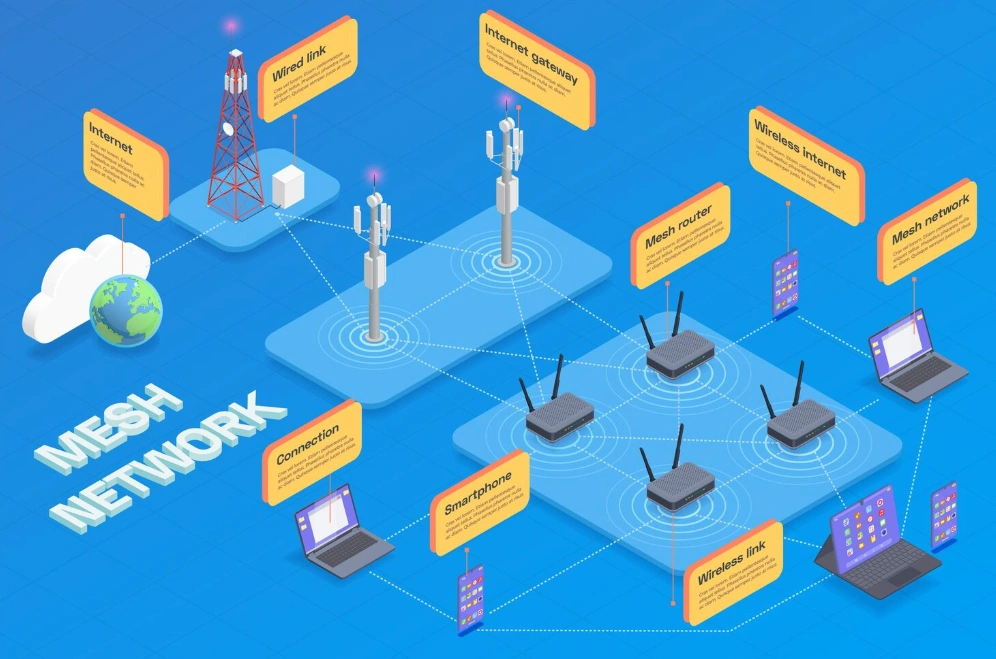

How Does a Wireless Mesh Network Operate?

Wireless Mesh Networks operate using a decentralised communication model in which interconnected mesh nodes work cooperatively to transmit data across the network. Instead of depending on a central router or fixed communication path, nodes continuously exchange routing information and adapt their routing paths in response to changing network conditions, increasing coverage, reliability, and fault tolerance – making Wireless Mesh Networks ideal for dynamic environments like smart cities, industrial IoT, or emergency communication systems.

Multi-Hop Communication

Multi-hop communication enables data to travel through several mesh nodes before reaching its final destination, rather than directly connecting with its gateway. Each node forwards packets onwards to the next available node – an approach which extends network coverage, reduces transmission barriers, and supports connectivity over large geographic areas.

Self-healing routing

Self-healing routing is one of the key characteristics of Wireless Mesh Networks that enhances their reliability and resilience. Mesh nodes continuously monitor neighbouring nodes and communication links for signs of interference, hardware failure, or power loss; in response to such interruptions or losses, self-healing routing identifies an alternative routing path automatically, reducing downtime and maintaining uninterrupted data transmission while decreasing manual network management requirements.

Self-configuration

Wireless mesh networks are designed to autoconfigure when new nodes join. Newly deployed nodes detect neighbours, establish secure connections, and update routing information quickly – saving time and facilitating expansion. This capability significantly speeds deployment times while simplifying expansion plans.

Dynamic path selection

Dynamic path selection allows networks to determine the most efficient routes for data transmission based on current network conditions. Routing protocols continuously analyze factors like signal quality, link reliability, congestion, and latency to optimise performance, and as conditions shift, automatically redirect via the best available path, automatically redirect traffic through the best available path, ensuring more stable and efficient communication.

Wireless Mesh Network Protocols

Wireless mesh network protocols establish rules to enable mesh nodes to find nearby devices, exchange routing information, and efficiently deliver data across the network. They play an essential role in providing reliable communication channels while optimising routing paths and guaranteeing continuous connectivity regardless of network conditions.

What Is a Wireless Mesh Network Protocol?

Wireless Mesh Network Protocols are sets of communication rules that dictate how data travels between interconnected mesh nodes. They allow nodes to identify optimal transmission paths, respond quickly to link failures, and support self-configuring and self-healing capabilities, which distinguish Wireless Mesh Networks from traditional wireless networks.

Why routing protocols matter

Routing protocols are critical components of Wireless Mesh Networks because they determine how data travels throughout its journey. Routing algorithms constantly evaluate network conditions such as link quality, node availability, congestion levels and path selection in order to select the most reliable routes – ultimately improving network performance, reducing latency times, and expanding scalability while guaranteeing continued communication even if individual nodes become inoperable.

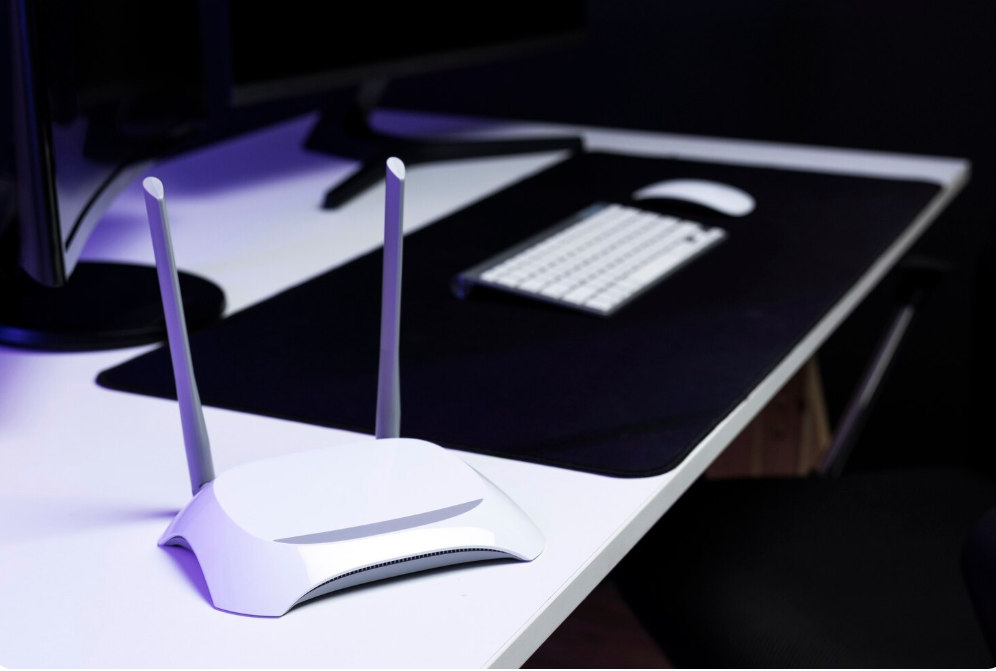

Popular Wireless Mesh Network Protocols

Hybrid wireless mesh protocol

HWMP is the default routing protocol defined in the IEEE 802.11s standard and utilizes proactive and reactive techniques for path selection to provide efficient path selection, making it suitable for both small and large mesh network deployments.

Optimised Link State Routing (OLSR)

OLSR is a proactive routing protocol that exchanges topology information between nodes. Because routes are maintained ahead of time, this enables low-latency communication. Therefore, this protocol makes an ideal candidate for stable Wireless Mesh Networks.

Ad hoc On-Demand Distance Vector (AODV)

AODV is an adaptive routing protocol, meaning it establishes routes when data needs to be transmitted, thus significantly reducing routing overhead and improving efficiency in networks with fluctuating communication patterns.

Better Approach To Mobile Ad hoc Networking (BATMAN)

BATMAN is a decentralised routing protocol that empowers individual nodes to make routing decisions based on local network information. Due to its flexibility, this protocol makes BATMAN suitable for large-scale community and municipal mesh networks.

Dynamic Source Routing (DSR)

DSR is an on-demand routing protocol in which each transmitted packet contains its full communication path. It excels in smaller, dynamic mesh networks where network topology changes frequently.

Auto-Configuration Protocols

Auto-configuration protocols enable a Wireless Mesh Network to automatically assign network settings and establish communication when new nodes are added to it. By eliminating manual configuration steps and enabling nodes to discover nearby devices and obtain network parameters on their own, auto-configuration helps speed deployment, ease network expansion, and lower administrative overhead costs significantly in large-scale dynamic mesh network environments.

Protocol Comparison Table

Protocol	Routing Type	Key Strength	Common Applications
HWMP	Hybrid	Combines proactive and reactive routing	IEEE 802.11s mesh networks
OLSR	Proactive	Maintains routing information for efficient path selection	Campus and municipal networks
AODV	Reactive	Creates routes when needed	Mobile ad hoc networks
BATMAN	Decentralized	Uses local information for routing decisions	Community mesh networks
DSR	Reactive	Uses source routing to define the packet path	Small dynamic networks

This comparison table enhances readability, allows users to quickly evaluate protocols, and increases the chance of being featured in snippets for searches related to “wireless mesh network protocol”.

Wireless Mesh Network Security

As Wireless Mesh Networks become an ever-more prevalent component of smart cities, industrial automation, healthcare systems and public communication systems, ensuring robust wireless mesh network security has become increasingly crucial. Since data transmission across multiple wireless nodes exposes them to cyber attacks that threaten the availability, confidentiality, and integrity of networks, effective security mechanisms help protect communication while preventing unauthorised access and maintaining reliable performance for optimal network operation.

Why Security Is Important

Security is of utmost importance in any wireless mesh network. Unlike traditional networks with centralised control, mesh networks rely on distributed communication among multiple nodes – increasing their attack surface. Implementing robust security measures that protect sensitive data, authenticate legitimate devices, and guarantee uninterrupted communication is paramount when used for mission-critical applications such as emergency response, military operations, or industrial IoT applications.

Common Security Threats

Denial-of-Service (DoS) Attack

DoS (Denial-of-Service) attacks involve overwhelming the network with excessive traffic, which consumes bandwidth and processing resources and could reduce performance or make communication services unavailable to legitimate users.

Blackhole attack

In a Blackhole attack, a malicious node falsely advertises itself as the best routing path. Once traffic is directed to that node, it intentionally drops the packets instead of forwarding them, disrupting network communication.

Wormhole Attack

Wormhole attacks typically involve two or more malicious nodes establishing a low-latency tunnel in order to manipulate routing decisions and redirect network traffic through it, giving attackers access to intercept, modify, or disrupt data transmission.

Sybil attack

Under a Sybil attack, one malicious node assumes multiple false identities within a network and attempts to influence routing decisions, disrupt network operations, and undermine trust among legitimate nodes.

Security technologies

WPA3

WPA3 is a Wi-Fi security standard that strengthens authentication and safeguards wireless communications using advanced encryption methods, providing greater resistance against password guessing or any attempted unauthorised access attempts.

AES encryption

Advanced Encryption Standard (AES) encrypts data so that intercepted information remains unreadable to unauthorised parties. AES is widely used to protect data in wireless and other network communications. AES has become the go-to standard for wireless communications security.

Virtual Private Network (VPN)

VPNs create an encrypted communication tunnel between network devices, protecting sensitive information from being intercepted when travelling across public or untrusted networks.

Intrusion Detection System (IDS)

An Intrusion Detection System (IDS) monitors network activity to identify suspicious behaviour, attempted unauthorised access, and potential cyberattacks. Early detection allows administrators to respond quickly and reduce security risks.

Firewalls

Firewalls monitor and filter both incoming and outgoing network traffic based on predefined security policies, helping prevent unauthorised access, blocking malicious traffic, and protecting mesh nodes from external threats.

Best Practices for Wireless Mesh Network Security

Maintaining strong wireless mesh network security requires adopting a multilayered approach. Organisations should implement robust authentication mechanisms, enable WPA3 encryption where supported, and update firmware and software as soon as vulnerabilities have been discovered. Continuous network monitoring, secure routing protocols, and regular security audits further strengthen network resilience – best practices which together serve to protect Wireless Mesh Networks against evolving cyber threats while guaranteeing reliable communication channels.

Wireless Mesh Network Applications

Wireless mesh networks (WMNs) have become an industry standard as they provide reliable, scalable, and self-healing wireless communication. Their ability to route data through multiple nodes makes them ideal for situations that demand uninterrupted connectivity.

Smart cities

Wireless mesh networks facilitate smart city infrastructure by linking traffic lights, surveillance cameras, environmental sensors, smart streetlights, and parking systems together. Their self-healing capability ensures continued communication even if one node fails – making city services more reliable and easier to expand over time.

Industrial Automation

Mesh networks provide real-time equipment monitoring, predictive maintenance, production automation, and reduced wired infrastructure costs in industrial settings.

Healthcare

Hospitals rely on wireless mesh networks to provide reliable connectivity for patient monitoring devices, medical equipment, electronic health records, and staff communication purposes. Their wide coverage and redundancy help guarantee uninterrupted access to critical healthcare information.

Military networks

Military organisations use mesh networks for secure communication among soldiers, vehicles, drones, and command centres. Because this type of network automatically reroutes data when nodes fail, it stays operational even in dynamic and challenging environments.

Disaster recovery

After natural disasters or emergencies, wireless mesh networks can be quickly deployed to restore communication when traditional infrastructure is damaged. Emergency responders use them to coordinate rescue operations, share real-time information, and maintain reliable communication in affected areas.

Public wifi

Wireless mesh networks are increasingly being deployed for public Wi-Fi service in airports, campuses, parks, hotels, and shopping centres. By linking multiple access points wirelessly, they offer seamless internet coverage while simultaneously cutting installation and maintenance costs.

Smart agriculture

Mesh networks in agriculture connect sensors that measure soil moisture, weather conditions, crop health, and irrigation systems – giving farmers access to real-time data they need for informed decision-making, resource optimisation, and increased crop productivity without depending on costly wired infrastructure.

Advantages of Wireless Mesh Networks

Wireless mesh networks offer several advantages for large-scale and mission-critical deployments, particularly in terms of reliability, coverage, scalability, and network resilience. Their distributed architecture can simplify network expansion and reduce the need for extensive wired infrastructure in certain environments.

Scalability

Wireless mesh networks are highly scalable because new nodes can be added without major modifications to the existing infrastructure. When expanding, additional devices will automatically integrate into the mesh, making expansion straightforward and cost-effective.

Reliability

Mesh networks utilize multiple communication paths between devices to ensure constant connectivity even if one route becomes inaccessible, improving network uptime and supporting applications that rely on continual communications.

Self-healing

An important hallmark of wireless mesh networks is their self-healing capacity. If any node or connection fails, the network automatically reroutes data through alternative paths, minimising disruptions while maintaining stable performance.

Easy expansion

Mesh networks differ from traditional wireless systems in that their growth can be easily expanded by simply deploying more nodes – making them ideal for growing campuses, industrial facilities and smart city projects.

Better coverage

Wireless mesh networks extend their reach more broadly and consistently over large or complex environments, offering wider and more consistent coverage that helps eliminate dead zones while guaranteeing reliable connectivity in areas where one access point may not suffice.

Lower maintenance

The self-managing nature of mesh networks eliminates the need for frequent manual intervention. Automatic routing, fault recovery and simplified network management help lower maintenance costs while improving overall operational efficiency.

Limitations of Wireless Mesh Networks

Deployment cost

Mesh networks may reduce long-term infrastructure expenses, but their initial deployment can require a substantial upfront investment in mesh nodes, networking equipment and system configuration. Large installations may increase upfront costs.

Interference

Wireless mesh networks operate on radio frequencies that may experience interference from nearby Wi-Fi networks, electronic devices or physical obstacles. Any excessive interference may reduce signal quality, network stability, and overall performance significantly.

Latency

Mesh networks require data to pass through multiple nodes before reaching its final destination, increasing transmission delays and making latency-sensitive applications like real-time video or industrial control even more complex.

Security risk

Wireless mesh networks can face security risks such as unauthorised access, data interception, and malicious node attacks because communication occurs across multiple wireless links. Strong encryption, authentication, regular firmware updates, and network monitoring can help reduce these risks.

Network complexity

As a wireless mesh network grows, managing routing, troubleshooting, firmware updates, and network optimisation becomes more complex. Large deployments may require experienced administrators and dedicated network monitoring tools.

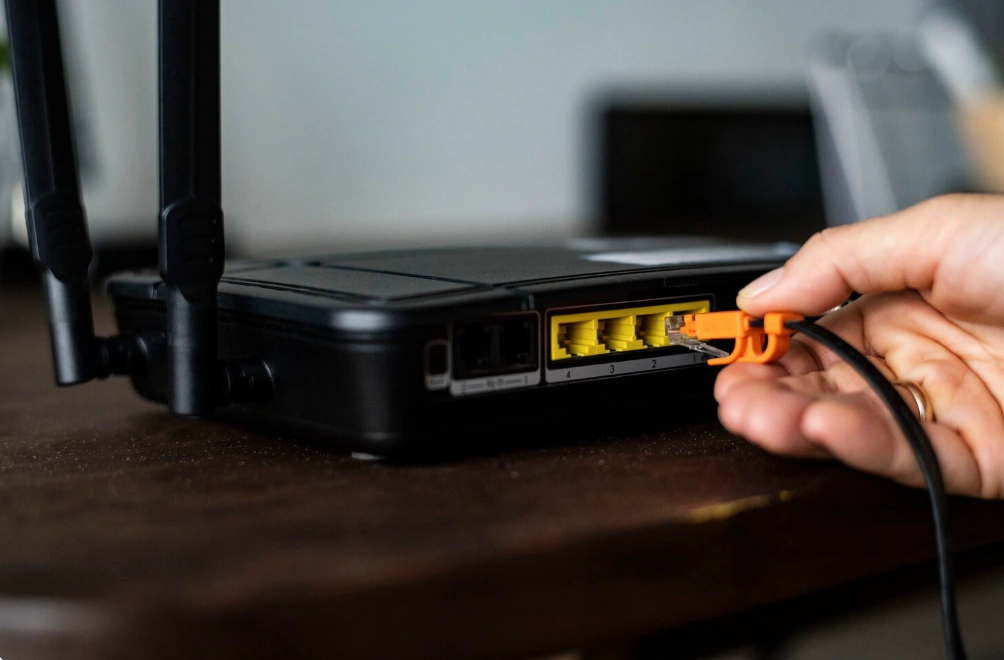

How to Set Up a Wireless Mesh Network

Choose the right hardware.

Select mesh routers or nodes that match your coverage requirements, internet speed, and number of connected devices. Opting for compatible and high-performance hardware will ensure greater reliability and future scalability.

Position the mesh nodes

Place mesh nodes where they can effectively communicate while providing coverage throughout an area. Avoid placing them near thick walls, large metal objects, or sources of wireless interference.

Configure the mesh node

Connect the primary mesh node (gateway) to your modem or internet connection and complete initial setup using its app or web interface. This gateway manages internet access for the entire mesh network.

Connect additional nodes

Add mesh nodes step-by-step according to their manufacturer’s instructions, turning on each one after power-up and watching as it automatically joins the network and extends wireless coverage so as to eliminate dead zones.

Test performance

After installation, test your network in various locations to check signal strength, coverage, and internet speed. If weak spots remain unaddressed, adjust mesh node placement to maximise performance.

Secure network

Protect your network by activating WPA3 or WPA2 encryption, creating a unique administrator password, regularly updating firmware, and altering default login credentials to reduce security risks.

Common Wireless Mesh Network Problems and Solutions

Slow speed

Slow network speeds are often caused by network congestion, interference, or too many devices sharing the same bandwidth. Optimising node placement, reducing interference, and updating network hardware can improve overall performance.

Weak signal

Poor signal strength can occur when mesh nodes are too far apart or blocked by walls and other obstacles. Moving the nodes closer together or placing them in better locations can improve connection strength and coverage.

Node disconnects

Mesh nodes may disconnect because of power interruptions, outdated firmware, weak wireless links, or interference. Restarting the affected node, checking its connection, updating firmware, and moving it closer to a neighbouring node may help restore a stable connection.

Roaming issues

Roaming issues occur when client devices do not switch smoothly between mesh nodes, resulting in temporary connection drops or delays. Proper node placement, firmware updates, and fast-roaming features can help improve seamless connectivity as users move between coverage areas.

Future of Wireless Mesh Networks

Wi-Fi 7

Adopting Wi-Fi 7 will likely enhance mesh network performance by offering higher data speeds, lower latency times, and greater support for multiple connected devices – ultimately improving user experiences in homes, businesses, and large public spaces alike.

AI routing

Artificial intelligence is revolutionising mesh networking by providing intelligent routing decisions. AI-powered systems can identify the most efficient communication paths, reduce congestion, and optimise network performance based on real-time traffic conditions.

Edge computing

As edge computing becomes more widespread, wireless mesh networks will support faster data processing closer to connected devices, thus reducing latency, improving response times, and supporting applications such as industrial automation, autonomous systems, and real-time analytics.

Smart cities

Future smart cities will rely heavily on wireless mesh networks to link traffic management systems, public safety infrastructure, environmental sensors, and other smart services. Their scalable nature makes them the ideal way to expand urban digital infrastructure.

6G

6G networks are projected to complement wireless mesh networking by providing ultrafast connectivity, low-latency support for more devices connected simultaneously, and massive device support – creating more advanced wireless communication systems overall.

IoT Growth

As the Internet of Things (IoT) continues to grow, more connected devices will require reliable and scalable communication networks. Wireless mesh networks can support these environments by connecting sensors, machines, and other devices across large areas while providing flexible coverage and multiple communication paths.

Frequently Asked Questions

What is a wireless mesh network?

A wireless mesh network (WMN) consists of multiple nodes connected wirelessly that work in unison to create reliable, wide-area connectivity. Each node plays an essential part in transmitting data across the network.

How does a wireless mesh network work?

Wireless mesh networks route data through multiple interconnected nodes. If a node or communication path becomes unavailable, the network can use an alternative available route to maintain connectivity.

What is wireless mesh network architecture?

Wireless mesh network architecture typically includes mesh routers or nodes, client devices, and gateway nodes. These components work together to provide multiple communication paths and support resilient network connectivity.

Which wireless mesh network protocol is most commonly used?

Hybrid Wireless Mesh Protocol (HWMP) is one of the most frequently employed protocols within IEEE 802.11s mesh networks, often seen as an integral component. Other popular protocols include OLSR and BATMAN.

Why is wireless mesh network security important?

Security is of utmost importance as data is transmitted wirelessly between multiple nodes. Implementing encryption, authentication, and regular firmware updates helps safeguard a network against cyber threats.

What are the main wireless mesh network applications?

Wireless mesh networks are widely utilised in smart cities, industrial IoT applications, healthcare settings, military communications networks, disaster recovery applications, public Wi-Fi networks and smart agriculture environments.

Conclusion

Wireless Mesh Networks provide a reliable, scalable, and self-healing networking solution for modern connectivity needs. Their ability to automatically reroute traffic, expand coverage, and support large numbers of connected devices makes them ideal for smart cities, industrial IoT, healthcare, public Wi-Fi, and disaster recovery. As technologies such as Wi-Fi 7, AI-powered routing, edge computing, and IoT continue to evolve, Wireless Mesh Networks will play an increasingly important role in delivering fast, secure, and resilient wireless communication.
